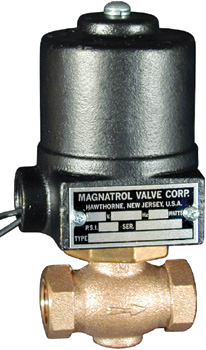

Bronze Solenoid Valve
Type "N" Reduced Port
Normally Closed - 1/2" to 3/4" Pipe Size
Max. Fluid Temp. - 212°F | Max. Static Pressure - 300 PSI
No Differential Pressure Required to Open
Operation
This solenoid valve opens when energized and closes when de-energized. In this direct acting valve, when the coil is energized, the stem is lifted from its conical seat by the plunger.
Application
To control the flow of Water, Oil, Air, Gas, Solvents, Brine, Vacuum and any other fluids not reactive with construction materials and free of sediment. This solenoid valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.
- Specifications
- Construction
|
Pipe Size Inches |
Max. Diff. PSI |
Valve Port Size | Type No. |
Watts AC |
Amps Hold 120-60 |
Amps Inrush 120-60 |
Watts DC |
Ship Wt. Lbs. |
Dimension In Inches | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||||
| 3/8 | DISCONTINUED - USE 1/2" VALVE WITH BUSHING | |||||||||||
| 1/2 | 25 | 3/8 | 18N22 | 25 | 0.4 | 1.2 | 18 | 6 | 6-1/4 | 5-3/8 | 2-3/4 | 2-3/4 |
| 50 | 1/4 | 18N42 | ||||||||||
| 75 | 3/16 | 18N52 | ||||||||||
| 100 | 5/32 | 18N82 | ||||||||||
| 150 | 1/8 | 18N62 | ||||||||||
| 225 | 3/32 | 18N72 | ||||||||||
| 50 | 3/8 | 33N22 | 45 | 0.8 | 2.4 | 23 | 10 | 7-1/8 | 6-3/8 | 3-1/2 | 2-3/4 | |
| 75 | 5/16 | 33N32 | ||||||||||
| 100 | 1/4 | 33N42 | ||||||||||
| 150 | 3/16 | 33N52 | ||||||||||
| 300 | 1/8 | 33N62 | ||||||||||
| 3/4 | 15 | 1/2 | 18N13 | 25 | 0.4 | 1.3 | 18 | 7 | 6-1/2 | 5-5/8 | 2-3/4 | 2-7/8 |
| 35 | 5/16 | 18N33 | ||||||||||
| 30 | 1/2 | 33N13 | 45 | 0.8 | 2.5 | 23 | 10 | 7-3/8 | 6-1/2 | 3-1/2 | 2-7/8 | |
| 75 | 5/16 | 33N33 | ||||||||||
(* Wetted parts)
*Valve Body - Cast Bronze, Globe Pattern - NPT ends
Coil Enclosure - Malleable Iron, 1/2” NPS conduit conn.
*Plunger - 430 Stainless Steel
*Valve Stem - 303 Stainless Steel
*Bonnet Tube - 304 Stainless Steel
*Spring - Inconel
*Body Seal - Non Asbestos Gasket
*Orifice Seal - Metal to Metal
*AC Shading Coil - Copper
*Stem Pin - Inconel
Coil - Encapsulated Class H, 18” leads
